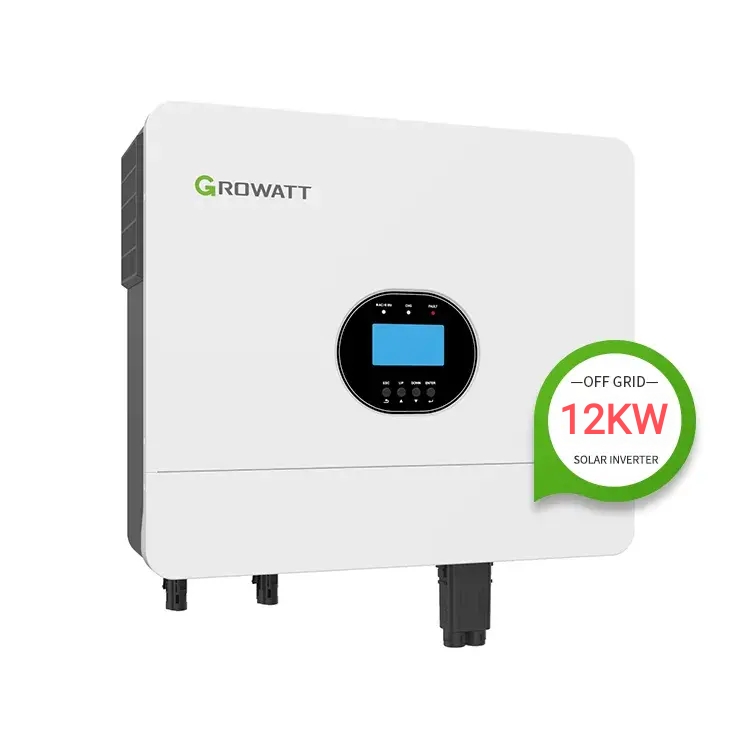

Growatt 12kW Single Phase Solar Hybrid Inverter is a cutting-edge solution for homeowners and small businesses looking to maximize solar energy efficiency and reduce electricity costs. Designed to work seamlessly with both on-grid and off-grid solar systems, this high-capacity inverter offers unmatched performance, reliability, and durability. Whether you are installing a new solar system or upgrading an existing setup, the Growatt 12kW inverter is engineered to meet all your energy needs efficiently.
| Growatt SPE 12000ES Hybrid Inverter â Full Specifications | |
|---|---|
| Model | Growatt SPE 12000ES |
| Rated Output Power | 12,000W (12kW) |
| Maximum PV Input Power | 15,000W |
| Maximum PV Input Voltage | 550VDC |
| MPPT Voltage Range | 60V â 480V |
| Number of MPPT Trackers | 2 |
| AC Output Voltage | 230V Âą 5% |
| AC Output Frequency | 50Hz / 60Hz |
| AC Output Current | 52.2A |
| Battery Voltage | 48V |
| Battery Compatibility | Lithium / Lead-acid / GEL |
| Maximum Battery Charge/Discharge Current | 190A â 280A |
| Efficiency | Up to 97.5% |
| Operating Temperature Range | -25°C to +60°C |
| Protection Degree | IP20 |
| Parallel Capability | Up to 9 units (108kW) |
| Communication | CAN / RS485 / WiFi / 4G |
| Dimensions (W x H x D) | 550mm x 465mm x 150mm |
| Weight | Approximately 22kg |
