Short Description
āĻŦāĻŋāĻāĻĻā§āĻ°āĻ āĻā§āĻ¯āĻžāĻļ āĻ āĻ¨ āĻĄā§āĻ˛āĻŋāĻāĻžāĻ°āĻŋāĻ° āĻāĻ¨ā§āĻ¯ ā§§ā§Ļ% āĻ āĻā§āĻ°āĻŋāĻŽ āĻĒā§āĻ°āĻ¯ā§āĻā§āĻ¯āĨ¤
SKU: 1000446
Categories: Solar IPS & UPS Inverter
This inverter features dual MPP trackers and supports a maximum PV input voltage of 500VDC, ensuring optimal energy capture from solar panels. The plug-and-play terminal for the PV port simplifies installation, while the dust-proof filter ensures it performs well even in harsh environments. Additionally, the inverter offers configurable grid or solar input priority and includes two AC input terminals with an integrated transfer switch for seamless operation.

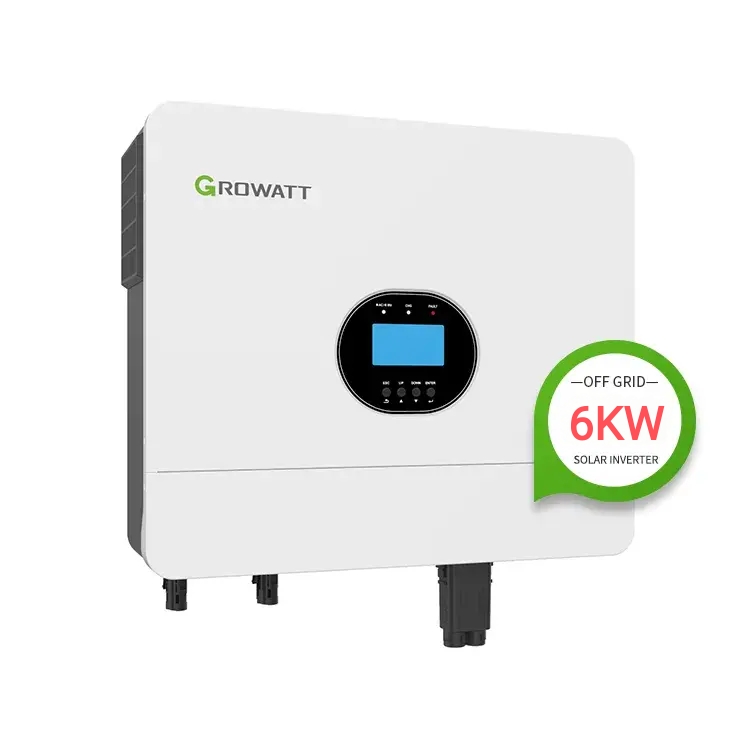

The Growatt SPF 6000ES Plus inverter is a reliable, scalable, and efficient choice for those seeking an off-grid solution in Bangladesh, perfect for various solar applications.
 | |
|---|---|
| Battery Voltage | 48VDC |
| Battery Type | Lithium / Lead-acid |
| Inverter Output | |
| Rated Power | 6000VA / 6000W |
| Parallel Capability | Yes, up to 6 units |
| AC Voltage Regulation | 230VAC Âą 5% @ 50/60Hz |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms typical, 20ms max |
| Solar Charger | |
| Max. PV Array Power | 8000W |
| MPPT Range | 120VDC ~ 450VDC |
| MPPT Trackers / Strings | 2 |
| Max. Input Current / Tracker | 16A |
| Max. PV Open Circuit Voltage | 500VDC |
| Max. Solar Charge Current | 100A |
| AC Charger | |
| AC Charge Current | 80A |
| AC Input Voltage | 230VAC |
| Selectable Voltage Range | 170â280VAC (PCs); 90â280VAC (Appliances) |
| Frequency Range | 50Hz / 60Hz (Auto sensing) |
| Physical | |
| Protection Degree | IP20 |
| Dimensions (W Ã H Ã D) | 460 Ã 395 Ã 132 mm |
| Net Weight | 13.5 kg |
| Operating Environment | |
| Humidity | 5% to 95% RH (non-condensing) |
| Altitude | < 2000 m |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | â15°C to 60°C |
The Growatt SPF 6000 ES Plus â 6kW Off-Grid Hybrid Inverter is a powerful 6kW off-grid solar inverter designed to provide uninterrupted, reliable, and efficient energy for homes and small businesses. With integrated battery storage support and pure sine wave output, this single-phase inverter ensures stable performance even during grid failures.
